Universal Corners and Radius
This curb is truly universal
This Universal concrete curb is aptly named. You can create a more conventional layout, without compromising on elegance, by opting for the Universal concrete curb. Combining good looks and affordability, the Universal curb definitely adds value to your property. Its simple design allows for easy maintenance.
Affordable
Classic
Premium
Price Index
Perfect for all budgets, the Universal curb will add a cachet to your property, enough to make your neighbours jealous
Beginner
Intermediate
Advanced
Ease of installation
The Universal curb requires no special installation tools. Simple, fast and efficient!
A more conventional layout, without compromising on elegance.
- Authentic look
- Easy maintenance
- Simple design
Drycast
Hydrapel Drycast
Drycast
Hydrapel
Durability
Added directly into our drycast concrete products, Hydrapel reduces water absorption and increases freeze/thaw resistance.
Protection
Protects against stains and UV rays for vibrant colors that will stand the test of time.
Technical specifications
Thickness (Height)×Width×Length×Depth
Corner
| Code | Description | Color | mm | inches | weight |
|---|---|---|---|---|---|
| COIN8P | Universal - Corner 8' | grey | 200 × 80 × 300 × 300 | 7 7/8 × 3 1/8 × 11 7/8 × 11 7/8 | 57 lbs |
| COINT | Universal - Corner 6" | grey | 150 × 80 × 300 × 300 | 6 × 3 1/8 × 11 7/8 × 11 7/8 | 38 lbs |
Radius
| Code | Description | Color | mm | inches | weight |
|---|---|---|---|---|---|
| RAYONG | Universal - Radius | grey | 200 × 80 × 610 | 7 7/8 × 3 1/8 × 24 | 80 lbs |
Palletization
Thickness (Height)×Width×Length×Depth
| Unit specifications | Dimension (mm) | Dimension (inches) | Weight |
|---|---|---|---|
| BOR8P | 200 × 80 × 100 | 7 7/8 × 3 1/8 × 39 3/8 | 86 lbs / 39 kg |
| BORDT | 150 × 80 × 900 | 6 × 3 1/8 × 35 1/2 | 58 lbs / 26 kg |
| COINT | 150 × 80 × 300 × 300 | 6 × 3 1/8 × 11 7/8 × 11 7/8 | 38 lbs / 17 kg |
| COIN8P | 200 × 80 × 300 × 300 | 7 7/8 × 3 1/8 × 11 7/8 × 11 7/8 | 57 lbs / 26kg |
| RAYONG | 200 × 80 × 610 | 7 7/8 × 3 1/8 × 24 | 80 lbs / 36 kg |
| Pallet specifications (imperial) | BORD8P | BORDT | COINT | COIN8P | RAYONG |
|---|---|---|---|---|---|
| Number of units | 40 | 44 | 24 | 24 | 24 |
| Coverage per pallet | 131.25 li.ft. / 40 m.li | 130.17 li.ft. / 39.68 m.li | N/A | N/A | N/A |
| Coverage per row | 32.81 li.ft. / 10 m.li | 32.54 li.ft. / 9.92 m.li | N/A | N/A | N/A |
| Weight | 3440 lbs | 2552 lbs | 912 lbs | 1368 lbs | 1920 lbs |
| Cubing | BORD8P | BORDT | COINT | COIN8P | RAYONG |
|---|---|---|---|---|---|
| Quantity / row per pallet | 10 | 11 | 12 | 12 | 8 |
| Number of row | 4 | 4 | 2 | 2 | 3 |
| Pallet dimensions | 40" × 40" | 36" × 40" | 36" × 40" | 40" × 40" | 36" × 40" |
| Product positioning | vertical | vertical | vertical | vertical | vertical |
Colours
Grey
Top view pallets
BORD8P and BORDT
COINT and COIN8P
RAYONG
Pro Tips
Multiple applications and uses for the Universal concrete curb

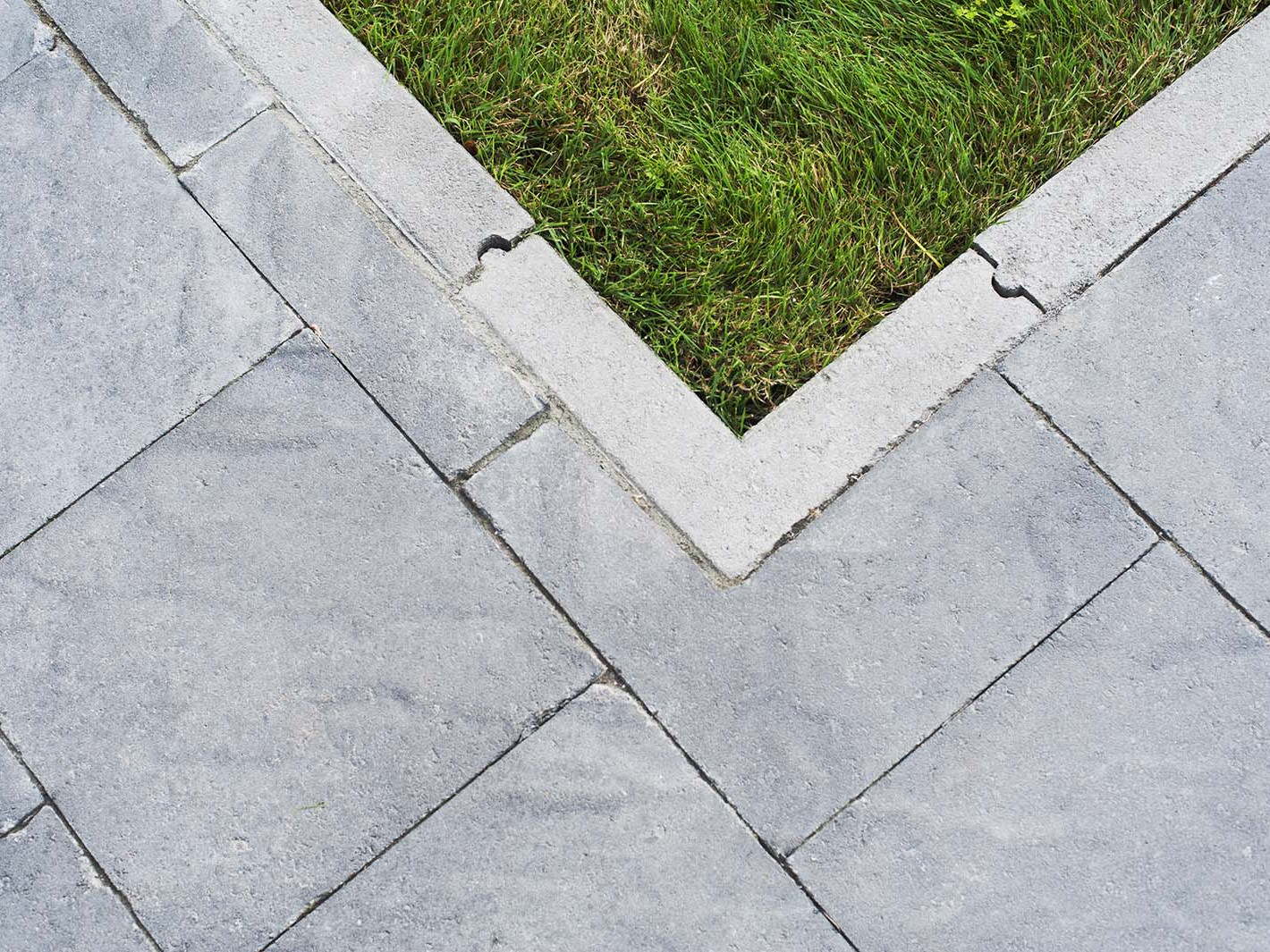

The concrete Universal 90 degree corner is designed to coordinate with the Universal curb to complement any square or rectangular layout. It is quick and easy to install without any overlap. Moreover, an interlocking key provides great stability to your layout. Simple and efficient!
The concrete Universal radius curb is designed to match the Universal curb in order to complement any round or oval layout. The product is quick and easy to install, without having to re-cut. Only 4 curbs are required to form a complete circle of 43” (1.9 m) in diameter. An interlocking key also offers great stability to your project.
Decorative Tips
With its timeless style, the Universal concrete curb will please everyone.
The Universal curb gives a unique character to all your landscaping. It can easily withstand time and changes in trends. It is a standard and refined product offering several layout possibilities.
Let your imagination run wild and build the elegant layout you've always dreamed of!
Go to your favourite retailer’s website to check the availability of the Universal curb
by clicking on their logo. Visit your nearest retailer to learn more about our Universal
curb corners and radius units as well as our many other products.
